A must have tool set for proper fuel injector timing!

Function:
(Incorrect injector timing can cause engine power issues, poor idle quality and fuel mileage issues.)
Our injector height gauges are used to properly set injector body height to the injector follower for proper fuel injector timing.

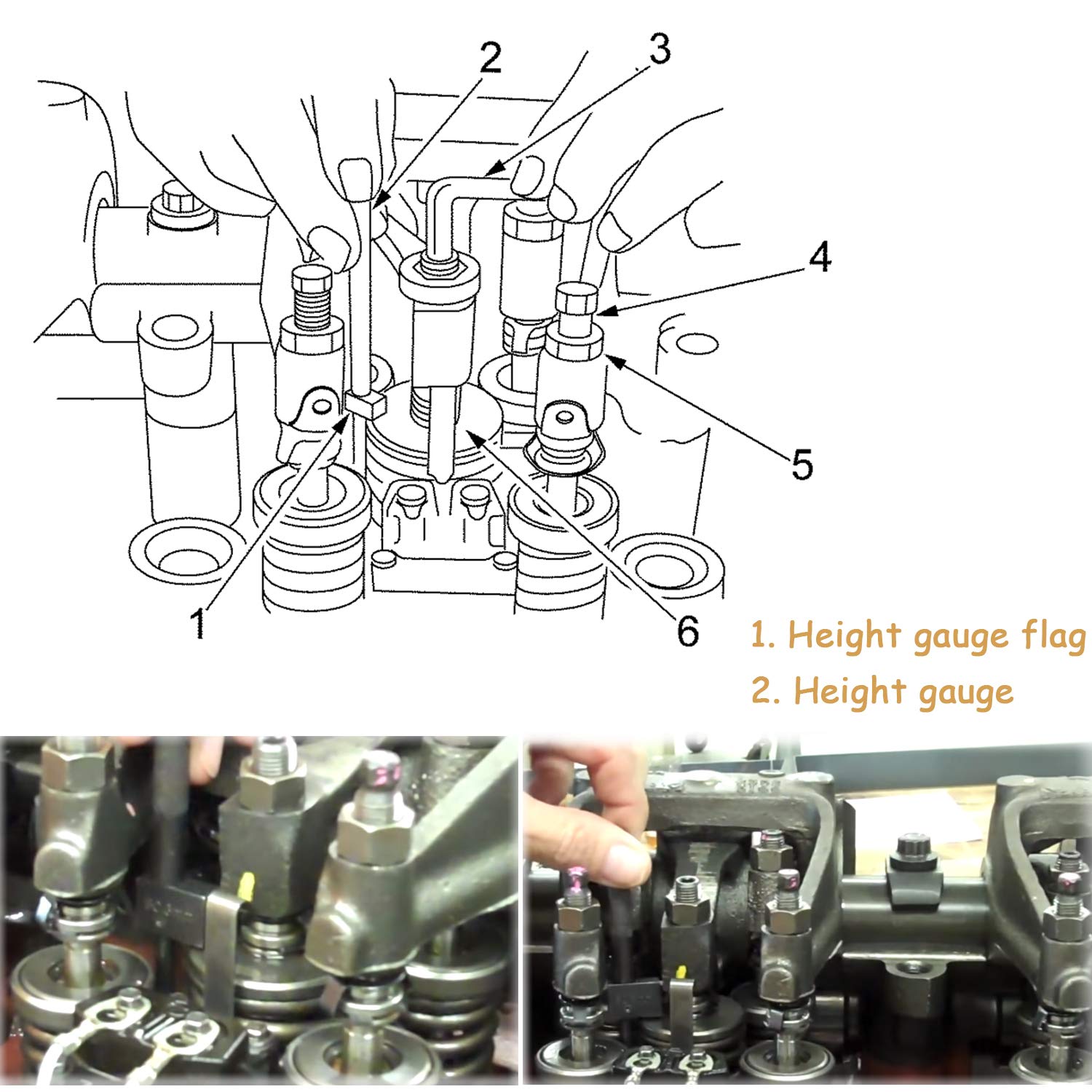

Note: Be sure the height gage seats on the machined surface with the tip in the pilot hole. Adjust the height until you can slide over it and find that slight drag.

Package Included:

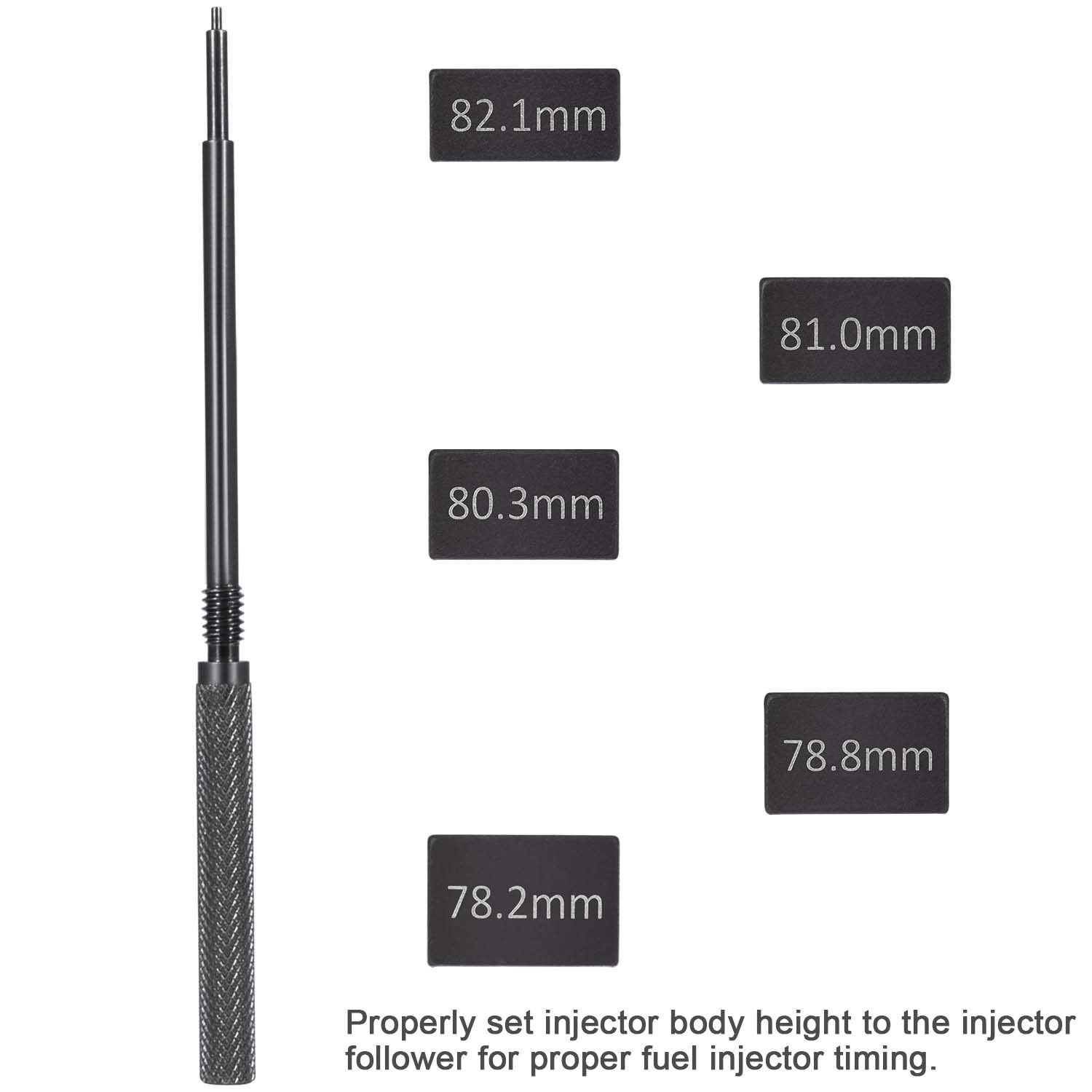

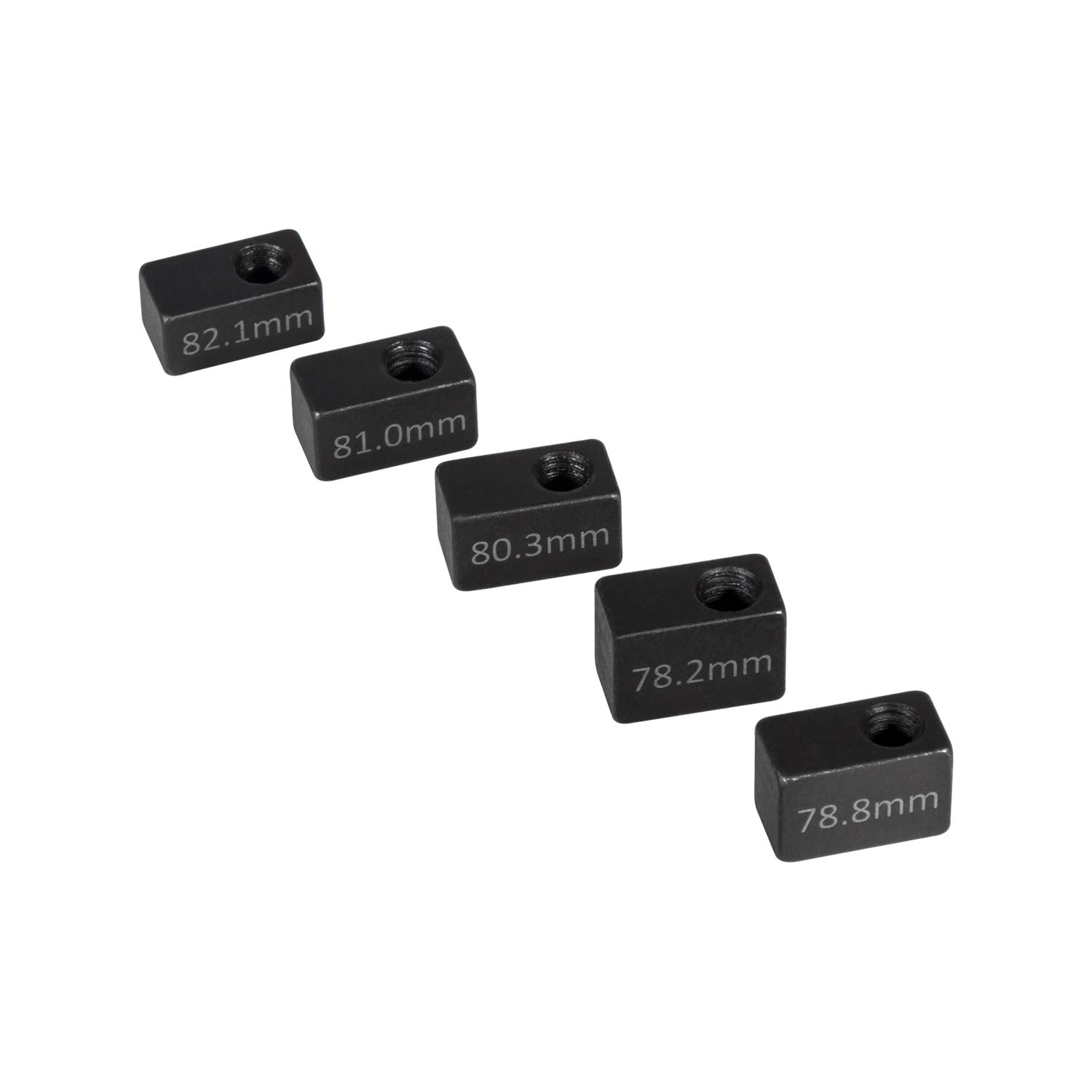

The kit comes with 5 measuring blocks in sizes: 78.2mm, 78.8mm, 80.3mm, 81.0mm and 82.1mm along with knurled handle.

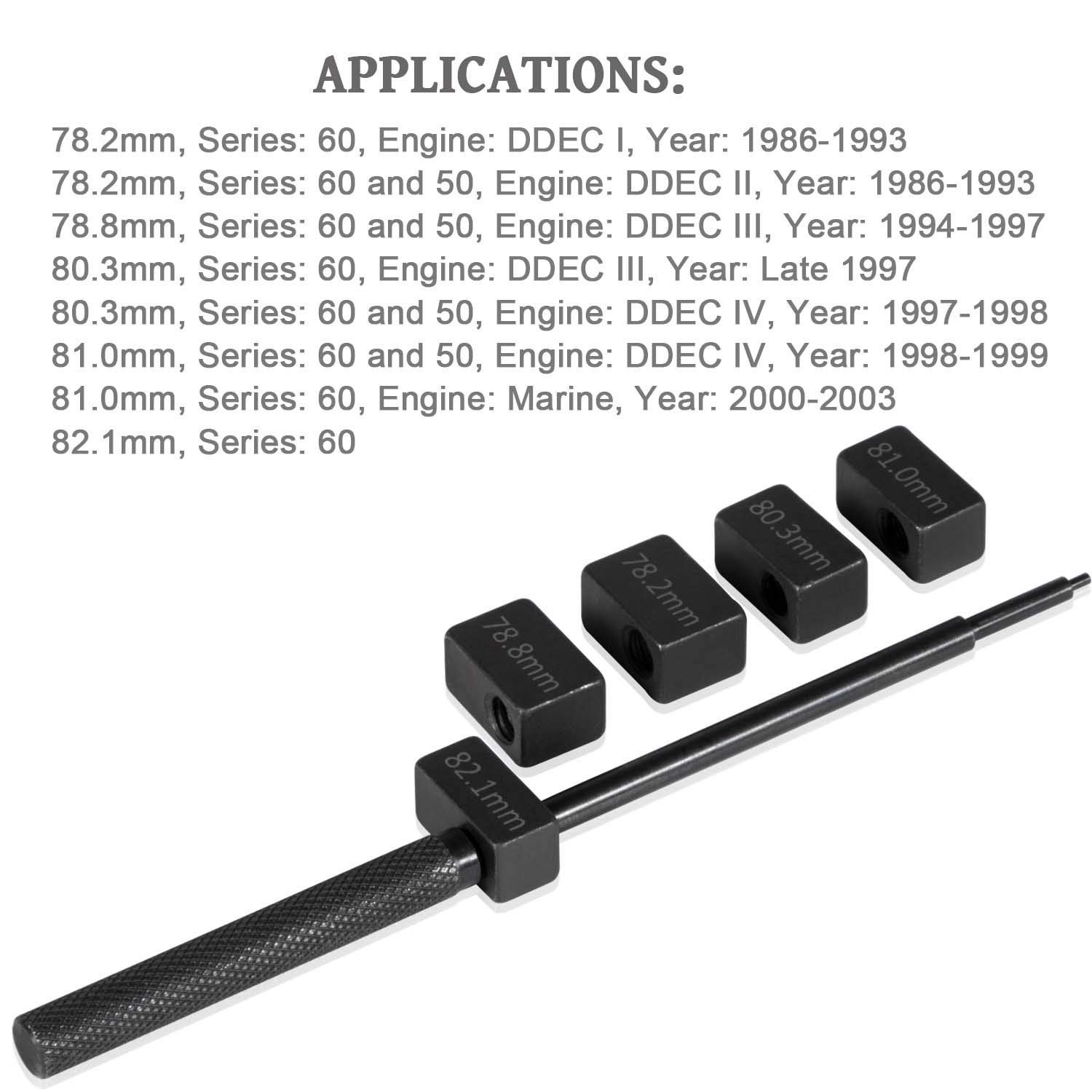

Applications:
78.2mm, Series: 60, Engine: DDEC I, Year: 1986-1993
78.2mm, Series: 60 and 50, Engine: DDEC II, Year: 1986-1993
78.8mm, Series: 60 and 50, Engine: DDEC III, Year: 1994-1997
80.3mm, Series: 60, Engine: DDEC III, Year: Late 1997
80.3mm, Series: 60 and 50, Engine: DDEC IV, Year: 1997-1998
81.0mm, Series: 60 and 50, Engine: DDEC IV, Year: 1998-1999
81.0mm, Series: 60, Engine: Marine, Year: 2000-2003
82.1mm, Series: 60

Go click the Buy Now Button and get this Injector Height Gauge with confidence!
If you have any problem about your order, please feel free to contact us.

Manufacturer	Yoursme
Brand	Yoursme
Item Weight	4.2 ounces
Package Dimensions	6.4 x 1.8 x 0.8 inches
Manufacturer Part Number	HU-22

Yoursme 3350 Injector Height Gauge for Detroit Diesel Engines Series 50 & Series 60 Similar to J-1853/J-42749/J-45002/J-39697/J-42665/J-1242/J-35637-A
