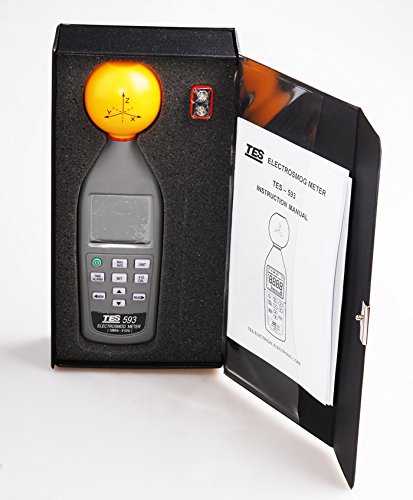

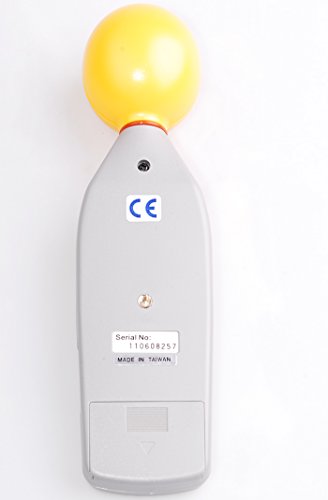

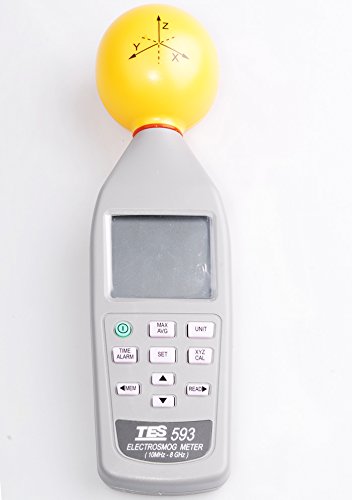

TES-593 Electrosmog RF Microwave Meter up to 8Ghz EMF TES593

Description

Features: 10 MHz to 8.0 GHz frequency range For isotropic measurements of electromagnetic fields Non-directional (isotropic) measurement with three-channel measurement probe High dynamic range due to three-channel digital results processing. Configurable alarm threshold and memory function High frequency (RF) electromagnetic wave field strength measurement. Mobil phone base station antenna radiation power density measurement Wireless communication applications (CW,TDMA,GSM,DECT) Wireless LAN (Wi-Fi) detection, installation Spy camera,wireless bug finder Cellular/Cordless phone radiation safety level Microwave oven leakage detection Personal living environment EMF safety RF power measurement for transmitters Specifications: •Sensor type:Electric field (E) •Frequency range:10MHz to 8.0 GHz •Directional characteristic:Isotropic,3-dimensional •Measurement range (CW signal>50MHz):38mV/m to 11V/m •Absolute error(@1V/m and 50MHz):± 1.0dB •Frequency response (taking into account typ.CAL factor):± 1.0dB (50MHz to 1.9 GHz),±2.4dB(1.9GHz to 35GHz) •Measurement method:Digital,triaxial measurement •Directional characteristic:Isotropic, triaxial •Measurement range selection:One continuous range •Display resolution:0.1mV/m, 0.1 μA/m, 0.1 μW/m²,0.001 μW/cm² •Setting time:Typically 1s (0 to 90% of meas. value) •Display refresh rate:Typically 400mS •Display type:LCD 4 digit •Audible alarm:Buzzer •Measurement units:mV/m,V/m , μA/m,mA/m,μW/m² ,mW/m², μW/cm² •Measurement display value: Instantaneous measured value, maximum value or average value since power-on
