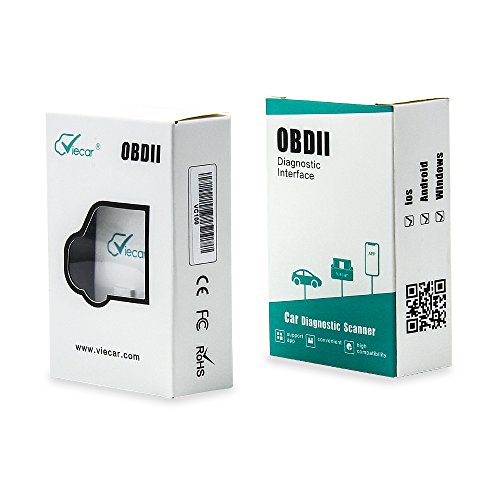

Viecar VC100 Bluetooth 4.0 Support iOS and Android Diagnostic Scanner Tool with Car HUD Display
Description
- It can support IOS / Android/Windows and high-speed data transmission, along with low power consumption, really save power
- Via connecting with in-vehicle ECU computer to achieve interface 360 degree experience of whole car, early find vehicle Sub-health, also ensures vehicle in warranty early find fault so that promptly take appropriate measures, protect the interests of the owners
- Viecar VC100 is no longer simply a screen information display system, but through stunning head-up display (HUD), let drivers no longer have to bow to watch the meter, while enjoying the pilot driving experience, and eliminating the potential safety problems from bowing to watch meter
- Recording driving behavior, analyzing condition data, recommending for improvement, and promptly correcting bad driving habits, in order to drivers can be more humane to use their own car
- Easy to use,Viecar VC100 is a Bluetooth "software + hardware" multi-functional,can obtain the right to use the software, no additional cost to purchase software
- ›See more product details
Product Parameters 1. Communication method: Bluetooth dual-mode (2.0/4.0) 2. Software platform: Support Android / IOS / Windows 3. Operating voltage: 9V~16V 4. Operating current: 45mA 5. Operating temperature: -40℃~85℃ 6. Operating humidity: <60% 7. Dimensions: 45mm*40mm*18mm 8. Supported vehicle: OBDII protocol vehicle Supports OBD-II protocols: SAE J1850 PWM SAE J1850 VPW ISO 9141-2 ISO14230-4 KWP (5 baud init) ISO14230-4 KWP (fast init) ISO15765-4 CAN (11bit, 500 Kbaud) ISO15765-4 CAN (29bit, 500 Kbaud) ISO15765-4 CAN (11bit, 250 Kbaud) ISO15765-4 CAN (29bit, 250 Kbaud) SAE J1939 CAN (29 bit, 250 Kbaud)Software features:1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).2. Clear trouble codes and turn off the MIL ("Check Engine" light)3. Display current sensor data, including:4. Engine RPM5. Calculated Load Value6. Coolant Temperature7. Fuel System Status8. Vehicle Speed9. Short Term Fuel Trim10. Long Term Fuel Trim11. Intake Manifold Pressure12. Timing Advance13. Intake Air Temperature14. Air Flow Rate15. Absolute Throttle Position16. Oxygen sensor voltages/associated short term fuel trims17. Fuel System status18. Fuel PressureCompatible software: Android version: OBD Auto Doctor, Torque, OBD Car Doctor, E OBD2, DashCommandiOS version: OBD Auto Doctor, GeekOBD_Viecar, Mini OBDII, OBD FusionWindow version: ScanMaster-ELM, ScanTool.net, PCMSCANFriendly reminderIf you use iphone,the first step is download the software,then,you dot not need to pair with the device in the Bluetooth list,only need to open the Bluetooth, and then connect the device in the software
