Question 1

How do we power this light?  Can someone provide the exact link to power it?

Accepted Answer

The question doesn’t say which option, so this answer will cover all the choices.  The Lightstrip-only product is a 24v constant voltage 5 channel LED strip R,G,B,WW,CW, with a common anode (+) terminal terminating in 6 pin JST-PH 2.0mm connectors. (IIRC Pin order is  +, R,G,B,CW,WW) A color is “on” when that color’s pin is connected to power supply (-).   Dimming is accomplished by pulse width modulation, i.e. the fraction of time that the color’s pin is grounded. Hue PWM repetition rate is 1,000Hz IIRC.
   The Philips Hue control for the Lightstrip Plus is supplied with a 24v DC 20W (0.8A) power supply with a coaxial plug .5.5mm OD 2.1mm ID. The Philips control senses the current loading of the control and re-scales brightness to avoid drawing more than ~18W (0.75A) from the power supply at maximum brightness when additional LED strip extensions are added. Earlier generations of the Hue Lightstrip plus control box had a JST-PH 1.5 connector and an adapter cable to reach the strip’s JST-PH 2.0 connector. Current versions simply hard-wire the 2m cable directly to the control.
     The work-around for driving more LEDs is to use the Philips control to drive a 24v 5 channel LED amplifier to drive as much 24v 5 channel LED strip as desired. The Philips control isn’t loaded by the LEDs on the output of the LED amplifier. The 24v LED amplifier’s current rating and the 24v power supply that powers the amplifier should be chosen for the power consumption of the LED strips being driven when all 5 colors are at 100% on. Derate by 50% for reliable operation and cool running. The 24v power supply used for the amplifier can be used to power the Philips control instead of the wall wart when desired.

Question 2

Is the power brick bivolt? (110v and 220v) or is it only 110v?

Accepted Answer

The power brick reads on mine 110-220v

Question 3

Will these work with a splitter to light two strips from one controller?

Accepted Answer

Yes, but if the LEDs would total more that 20 watts the result may be better using a 5 channel LED amplifier and a 24v power supply of appropriate size. At power-on the Philips control detects if the power draw will exceed the power supply's capacity and re-scales the output dimmer so that 100% brightness in the app or at the bridge is within the capability of the power supply.

Question 4

Attach to the back of ultra thin tv (lg oled)? will it get very hot?

Accepted Answer

They barely gets warm. The power supply delivers a little over 19W and the maximum delivered to LED strips is around 16W at no more than 8W/meter. Even using double this density single row RGBCCT LED strips with a 5ch LED amplifier and a separate 24V DC  power supply you won’t get warmer than the TV itself does. If you used 100LED/m 5-in-1 dual row led strips that would deliver closer to 100W and you would want to put the strips on extrusions and mount the clips on standoffs. That would also put so much light back there you would have to dim them below 25% to watch TV.

ASIN	B08CK7D1XR
Additional Features	Corded
Best Sellers Rank	#68,493 in Tools & Home Improvement ( See Top 100 in Tools & Home Improvement ) #532 in LED Strip Lights
Brand	Philips Hue
Brand Name	Philips Hue
Color	Single Color
Connectivity Protocol	Bluetooth, Wi-Fi, Zigbee
Connectivity Technology	Wi-Fi
Control Method	Remote
Controller Type	App Control, Voice Control
Customer Reviews	4.4 out of 5 stars 2,519 Reviews
Included Components	1x BLE Lightstrip , 1x Extender adapter
Indoor Outdoor Usage	Indoor
Indoor/Outdoor Usage	Indoor
Ingress Protection Code Rating	IP20
Item Dimensions	2.14 x 3.43 x 5.46 inches
Item Length	39.3 Inches
Item Type Name	LED Light strip
Light Color	Single Color
Light Source Type	LED
Manufacturer	Signify North America Corporation
Manufacturer Part Number	555326
Manufacturer Warranty Description	2 years.
Material Type	Acrylic
Model Number	555326
Number of Items	1
Number of Light Sources	10
Occasion	Christmas
Power Source	AC
Product Style	Extension (3ft)
Smart Home Compatibility	Smart Home Compatible
Special Feature	Corded
Theme	Voice
UPC	046677555320
Unit Count	3.0 Feet
Voltage	120 Volts
Water Resistance Level	Not Water Resistant
Wattage	20 watts

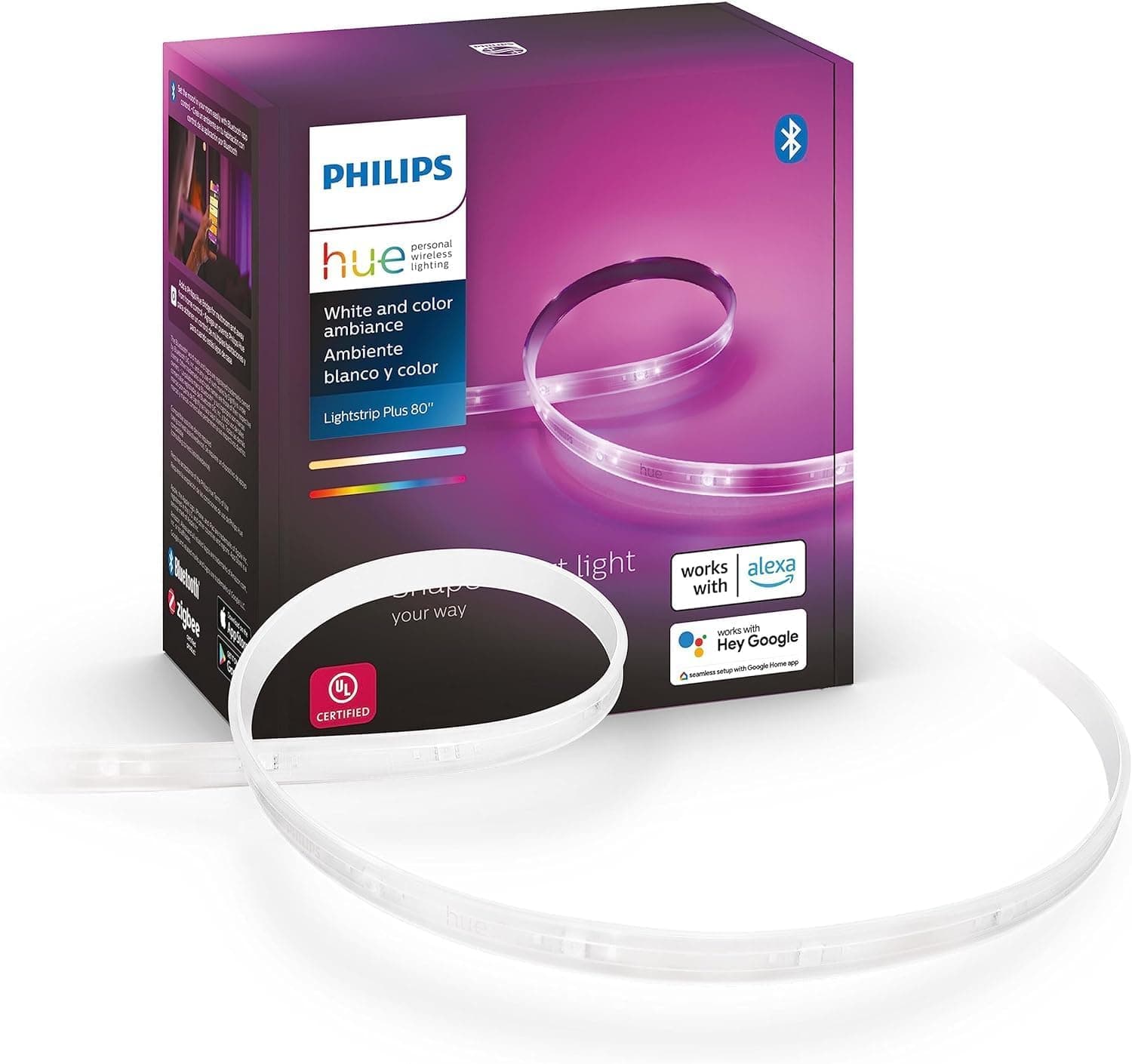

Philips Hue Bluetooth Smart Lightstrip Plus 2m/6ft Base Kit with Plug, (Voice Compatible with Amazon Alexa, Apple Homekit and Google Home), White
