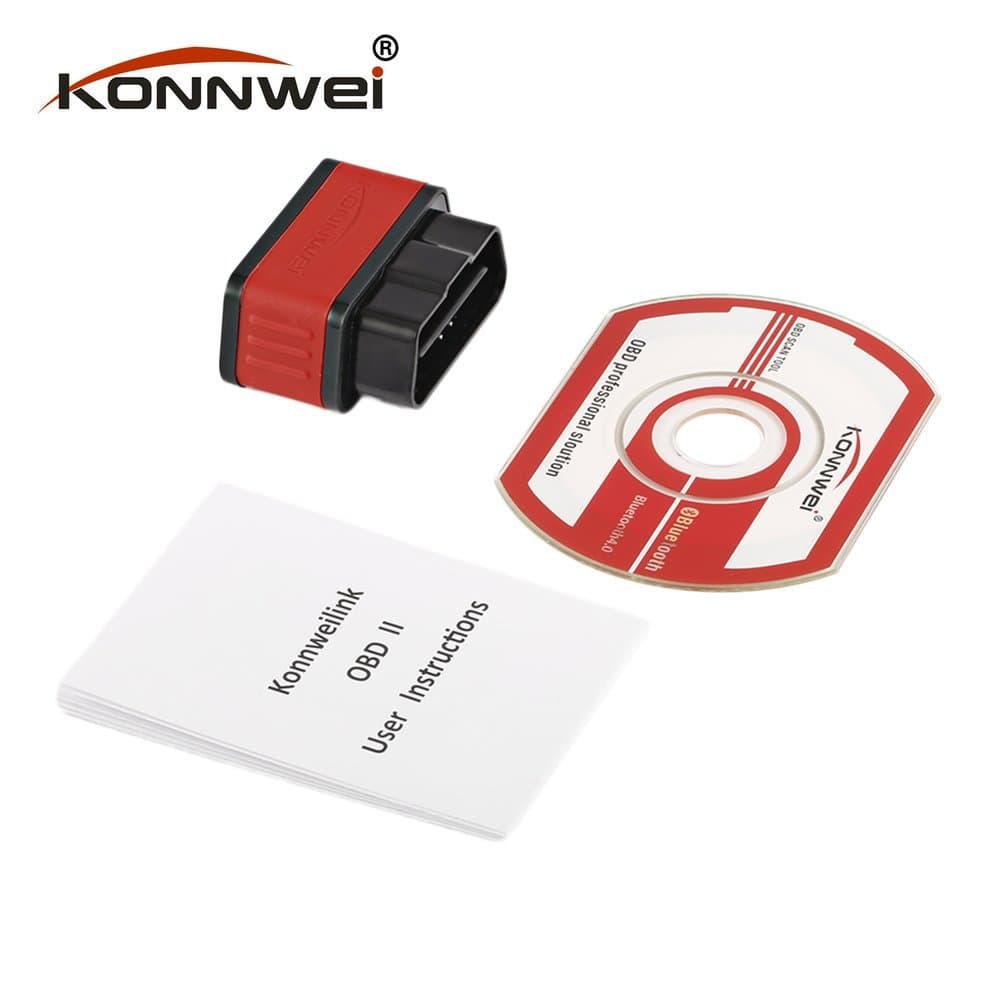

Banghotfire Konnwei KW903 ELM327 ODB2 Car Diagnostic Scanner Code Reader Tool Black & Red

Description

Features:Konnwei self-diagnosis any car that supports OBDII protocolsSmall size, compact structure. Plug and never unplugStable wireless connectionNo wires or batteries (adapter is powered by the diagnosis size sockets)Stop communication, wait half an hour, auto sleepSupports all OBDII protocolsSupports for Android.The adapter uses the fastest and most reliable ARM chipsDescription:KW903 scantool is a high-quality automotive scanning tool, supports all OBD-IIThe device is a small adapter that plugged into the vehicle OBD-connector.Protocols Support:0.Automatic1.SAE J1850 PWM(41.6Kbaud)2.SAE J1850 VPW(10.4Kbaud)3.for ISO9141-2(5 baud init,10.4Kbaud)4.for ISO14230-4 KWP(5 baud init,10.4 Kbaud)5.for ISO14230-4 KWP(fast init,10.4 Kbaud)6.for ISO15765-4 CAN(11bit ID,500 Kbaud)7.for ISO15765-4 CAN(29bit ID,500 Kbaud)8.for ISO15765-4 CAN(11bit ID,250 Kbaud)9.for ISO15765-4 CAN(29bit ID,250 Kbaud)11.KWP2000A.SAE J1939 CAN(29bit ID,250*Kbaud)B.USER1 CAN(11*bit ID,125*Kbaud)C.USER2 CAN(11*bit ID,50*kbaud)*default settings(user adjustable)Specifications:Brand: KonnweiModel: KW903Material: plastic & siliconeColor: Black & Red, BlackSize: 49*22*35mm(L*W*H)Compatability: OBD2Supply voltage(VDD):12VWork temperature range: -20 ~ +70 ℃Storage temperature range:-40 ~ +125 ℃RF sensitivity(Basic Rate): -85dbModulation Mode:GFSKFrequency Range:2402 ~ 2480MHZTransmission Range:10MBluetooth Profile:SPPUART Params:38400,8,n,1Package included:1 x KW903 ODB2 Car Diagnostic Scanner 1 x CD 1 x Manual
